Morikusuta工业型高压脉冲电场

Industrial PEF Unit

DTI's Industrial PEF Systems range in power from 50 to 600 kW, suitable for processing multiple tons of product per hour.

DTI's PEF systems can be optimized for a wide range of applications.

For solids, such as whole fruits and vegetables, a water bath conveyor with a customized treatment chamber is used. Liquids are continuously treated while flowing through the system (each system is shown on the previous page).

All DTI systems employ solid-state electronics providing long system lifetime, high efficiency, and low operating costs.

Industrial PEF Unit Characteristics

Avg. Power: Max 50 - 600 kW

Field Strength: to 50 kV/cm

Peak Voltage: 10 - 40 kV

Peak Current: to 500 A

Pulse Frequency: to 4 kHz

Throughput: 100 - 10,000 liters/hour*

*Processing capacity will depend on other parameters including conductivity

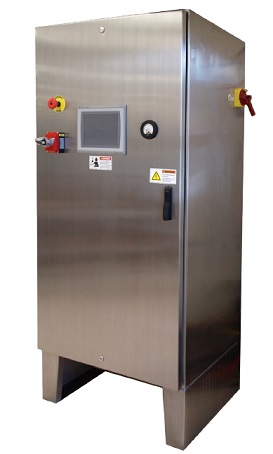

Industrial PEF Unit (100 kW) built to NEMA 4 standards.

工业级脉冲电场（PEF）处理系统

DTI工业级PEF系统功率范围覆盖50-600千瓦，适用于每小时数吨级产品的规模化处理。该系统具备广泛的应用适配性，可根据不同物料特性进行优化配置：针对完整果蔬等固体物料，采用配备定制处理腔室的水浴输送系统；对于液体物料，则通过连续流经系统的处理方式实现高效加工（具体系统配置见前页图示）。所有DTI系统均采用固态电子技术，确保设备长使用寿命、高能效转换与低运营成本。

工业级PEF系统技术特性：

• 平均功率：50-600千瓦（最大值）

• 场强强度：最高50千伏/厘米

• 峰值电压：10-40千伏

• 峰值电流：最高500安培

• 脉冲频率：最高4千赫兹

• 处理能力：100-10,000升/小时*
  （*实际处理量将取决于电导率等其他参数）

•

工业级脉冲电场处理系统（100千瓦）符合NEMA 4防护标准
