Lab PEF Unit

Lab PEF Unit

DTI builds a range of Pulsed Electric Field (PEF) systems for R&D, small-scale, and large industrial applications. DTI’s Lab PEF Units are ideal for research, determining optimized PEF parameters for application scale-up, and for low volume production. DTI’s Lab systems come with an easy-to-use touchscreen interface, and a single treatment chamber where high voltage pulses are applied to the product.

DTI configures treatment chambers for both static and continuous applications. A continuous treatment chamber (shown in the left upper image) allows pump-able product to flow through the system assuring that all product receives the desired PEF treatment. A static chamber (shown in the left lower image) is ideal for processing solids (e.g. plant tissue) in a water bath.

（Cutaway view of a continuous treatment chamber for liquids showing a single treatment zone.）

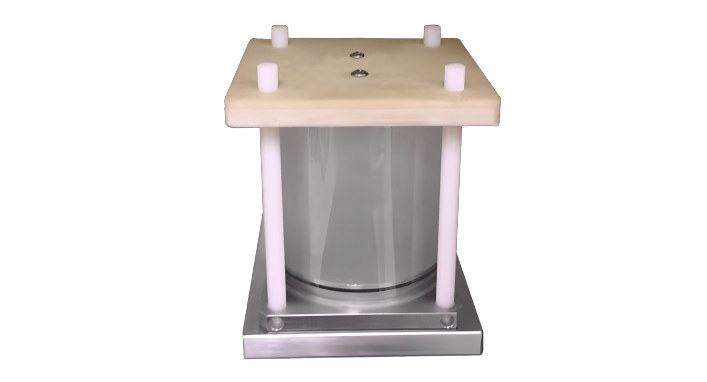

（Static treatment chamber for tissuemodification of solids; volume is 400 mL.）

DTI has installed PEF Units at universities and research centers around the world for food and biomass research. Many of these research centers are available to assist industry in assessing potential applications. DTI also offers rental units that can be shipped to the customer's facility for initial trials.

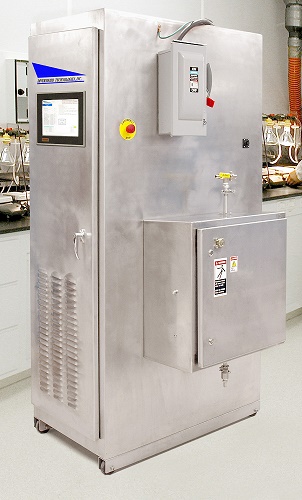

Laboratory PEF Unit.

The front-mounted touch screen PLC provides simple operations and precise control, while the static or continuous treatment chamber enclosure located on the side allows for ease of cleaning and assembly. The pulsed electric field is applied to the fluid as it flows through the treatment zone.

Lab PEF Unit Characteristics

Avg. Power： Max 12 kW

Field Strength： to 50 kV/cm

Peak Voltage： to 20 kV

Peak Current： to 100 A

Pulse Frequency： to 7 kHz

Throughput： 10 - 100 liters/hour*

All Systems Include a Single Continuous Treatment Chamber and Pump (for liquids). Treatment chambers may be customized to accommodate a wide range of input materials (liquids or solids), flow rates, and power levels.
